Description

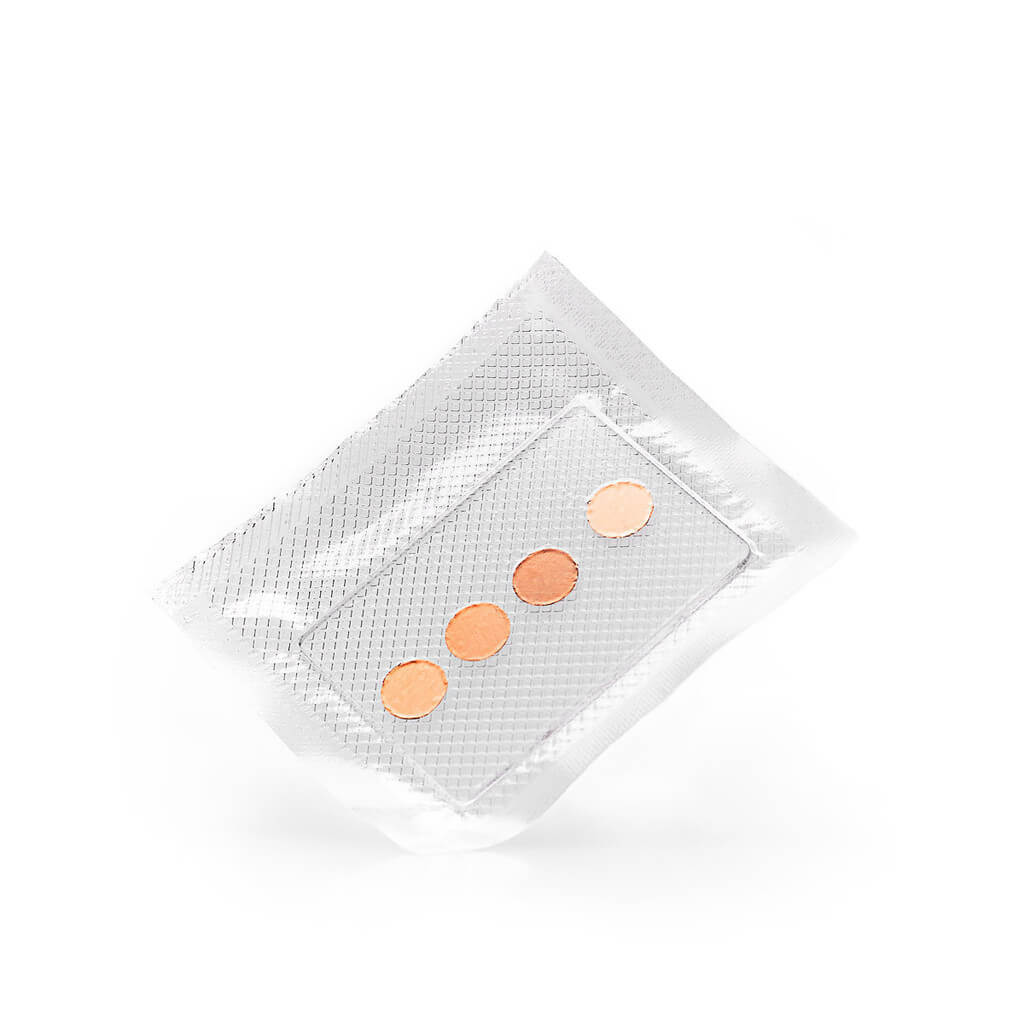

Monolayer Graphene Film on Cu Foil – 12mm round – 4 pack
Our Monolayer Graphene Film on Cu Foil – 12mm round consists of a single-layer graphene grown on copper foil substrate that is coated with single atomic layer of graphene which is deposited via chemical vapor deposition (CVD).. Our Monolayer Graphene Film on Cu Foil – 60mm X 40mm is a high quality product with a great homogeneity. Thanks to its excellent properties is one of the best options for R&D Departments and Universities.
Graphene Film
Transparency: > 97%
Coverage: > 95%
Thickness (theoretical): 0.345 nm
FET Electron Mobility on Al2O3: 2000 cm2/Vs
FET Electron Mobility on SiO2/Si: 4000 cm2/Vs
Sheet Resistance: 580±50 Ohms/sq (1cm x 1cm)
Grain size: Up to 10 μm
Substrate Cu Foil
Thickness: 18 μm
Pretreated for easier bottom layer removal
Applications
Graphene research, Electronics, Aerospace industry, MEMS and NEMS, Microactuators, Conductive coatings
