Description

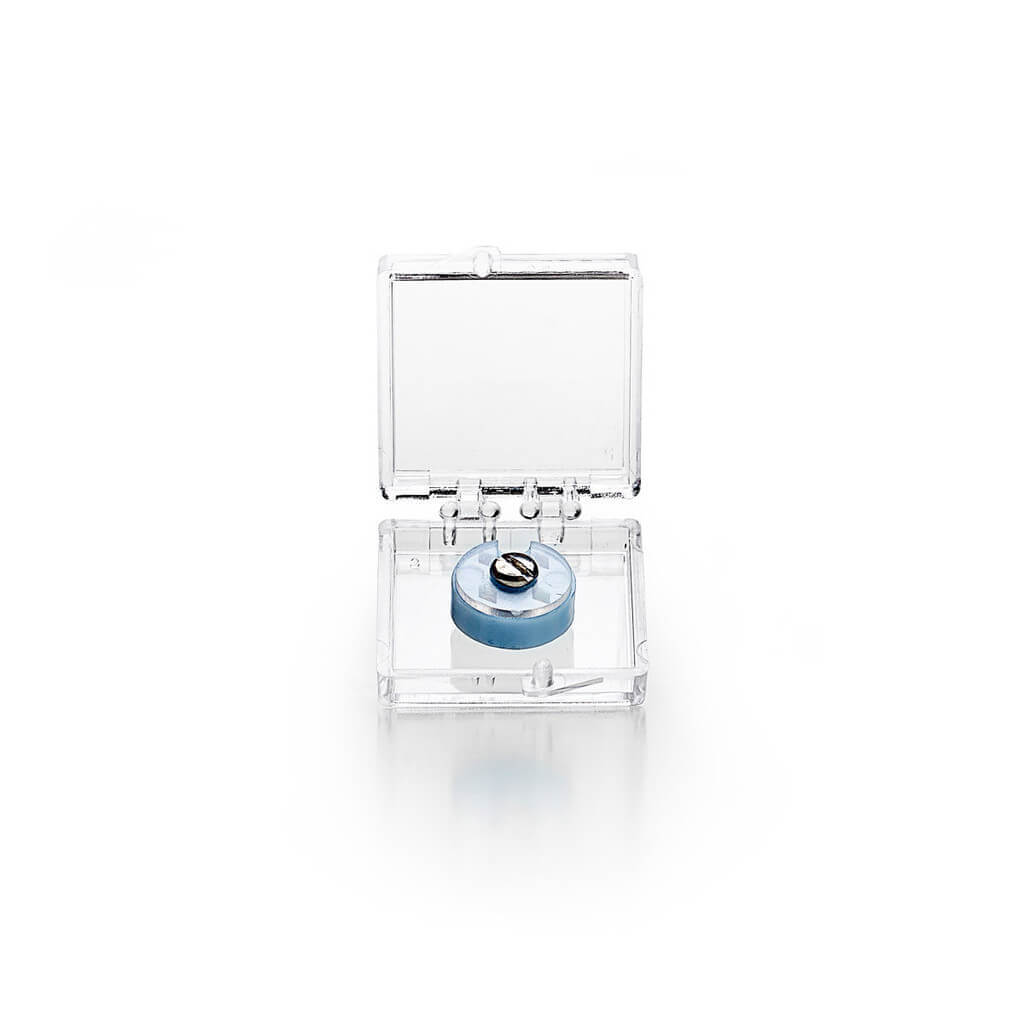

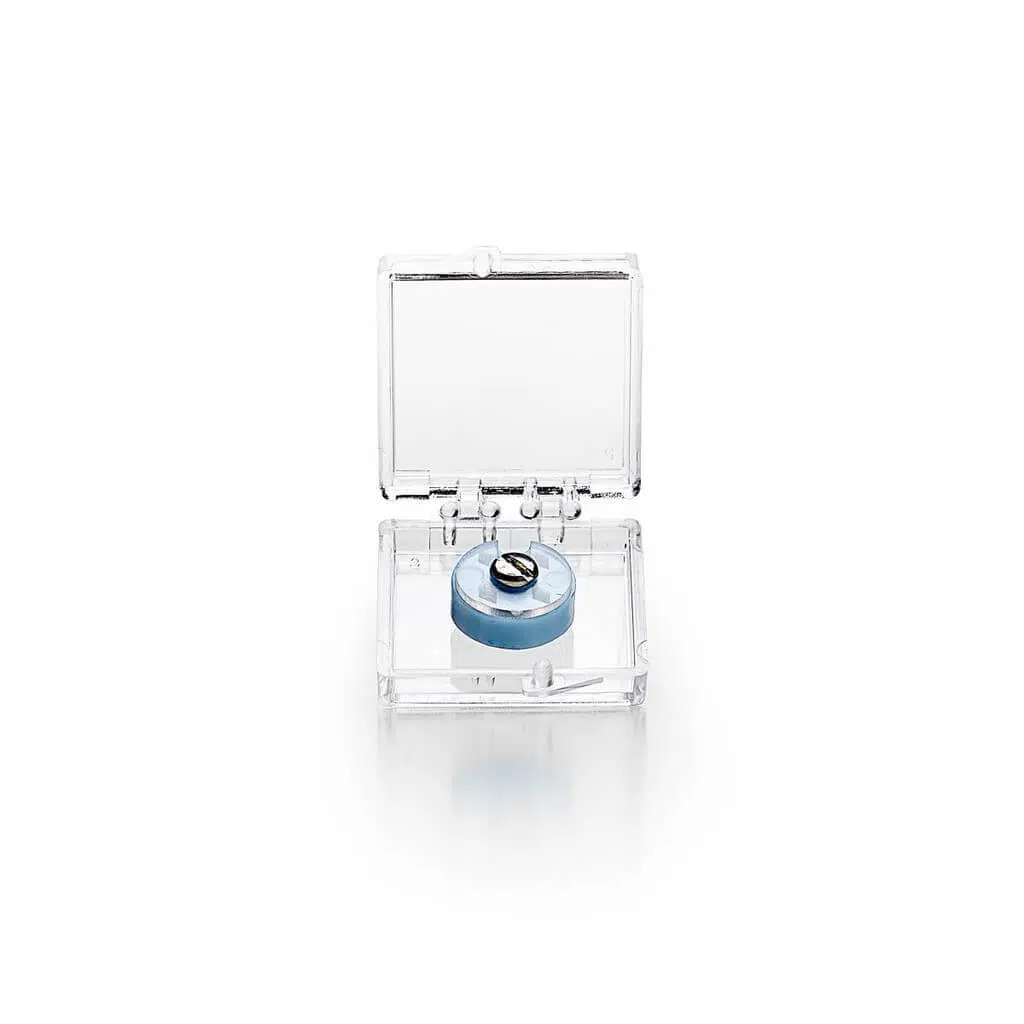

Suspended Monolayer Graphene Films on TEM Grids – 4 pack
Our Suspended Monolayer Graphene Films on TEM Grids – 4 pack is grown on a 50 micron-thick copper foil that is coated with single atomic layer of graphene which is deposited via chemical vapor deposition (CVD). The monolayer graphene is grown by CVD and transferred onto a Quantifoil TEM grid. The graphene is suspended over 2μm holes. The excellent features, size and quality make this product one of the best options for R&D Departments and Universities.
Graphene film
Growth Method: CVD synthesis
Appearance (Color): Transparent
Transparency > 97%
Appearance (Form): Film
Coverage > 95%
Number of graphene layers: 1
Thickness (theoretical) 0.345 nm
FET mobility on Al₂O₃: 2800 cm2/Vs
Hall mobility on SiO₂/Si: 3500 cm2/Vs
Sheet Resistance: 580±50 Ohms/sq (1cm x 1cm)
Grain size: Up to 10 μm
TEM Grid Substrate
Type: QUANTIFOIL ®
R 2/4 Hole size: 2 μm
Space between holes: 4 μm
Diameter: 3mm Coating: Au coated
